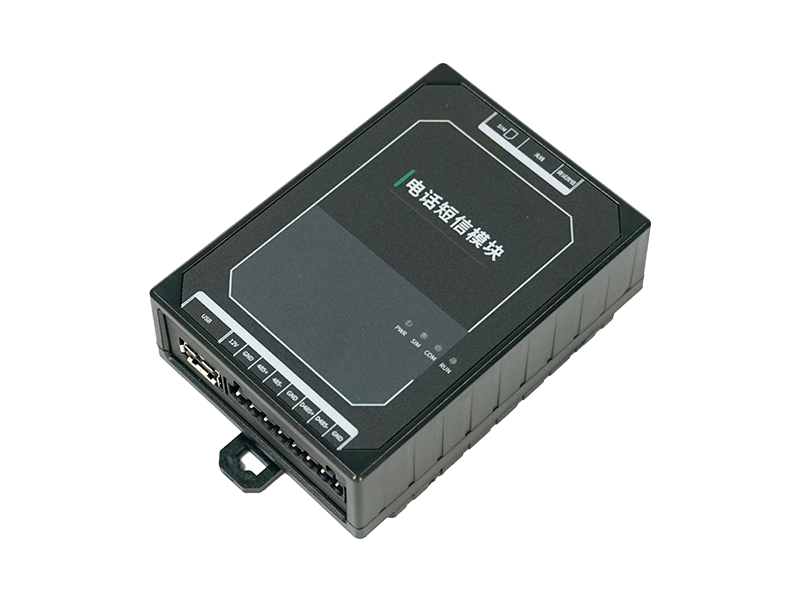

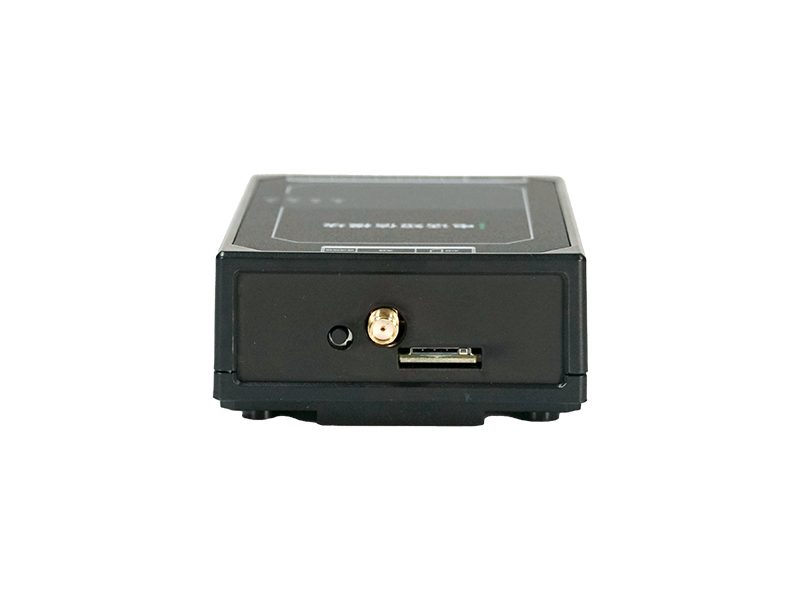

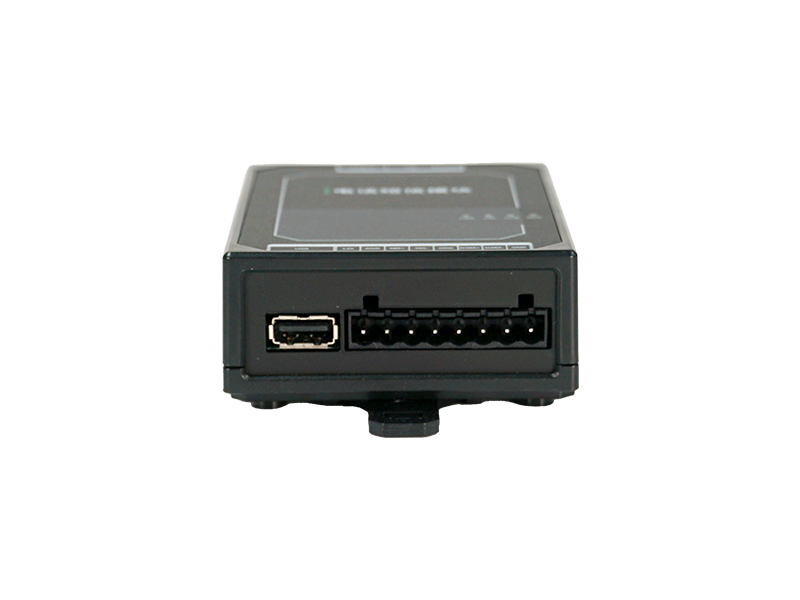

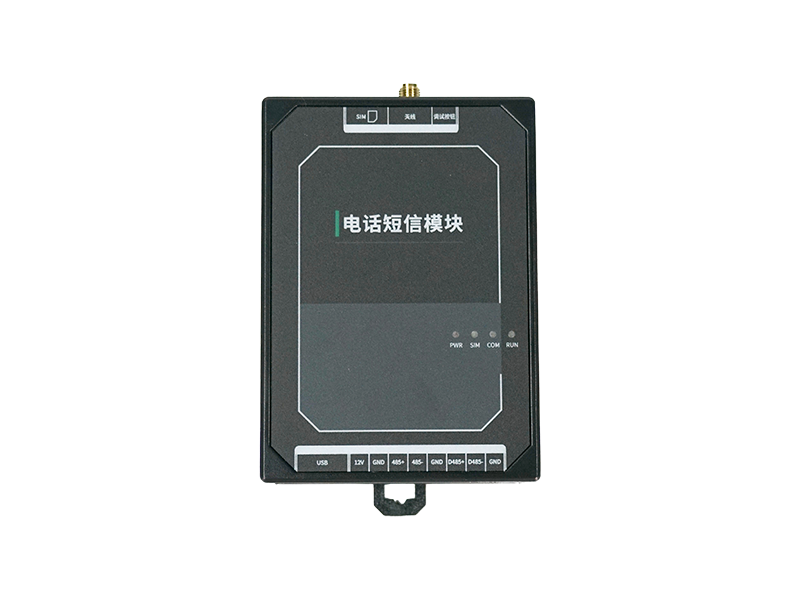

The OM-DB601 is a versatile communication module featuring comprehensive LTE network coverage for reliable connectivity. It supports SMS and voice call notification functions to ensure timely alerts. Equipped with 1 RS485 interface, 1 USB port, and LTE Cat 1 connectivity, it delivers robust performance for various monitoring and security applications. The device supports multiple frequency bands including LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B5/B8, and GSM/GPRS/EDGE 900/1800 MHz, ensuring compatibility with major network operators for seamless deployment.
|
Specifications |
|
|
Power Supply |
|
|
Operating Voltage |
DC 9 ~ 16V |
|
Indicators |
|
|
PWR LED |
Normal: Constant on (power normal); Fault: Always off (no power) |
|
Network Data |
|
|
LTE Category |
Cat 1 |
|
LTE Uplink |
Up to 5 Mbps |
|
LTE Downlink |
Up to 10 Mbps |
|
EDGE Uplink/Downlink |
Up to 236.8 Kbps |
|
GPRS Uplink/Downlink |
Up to 85.6 Kbps |
|
Operating Environment |
|
|
Operating Temperature |
-40°C ~ +85°C |
|
Operating Humidity |
5% ~ 95% RH (non-condensing) |
|
Storage Temperature |
-40°C ~ +90°C |
